HONDA Vehicle Diagnostics

When the ECM/PCM is replaced, it is necessary to be recognized a code each other to the ECM/PCM and the Immobilizer Control Unit-Receiver with the HDS. Also, the vehicle with Keyless Access System needs to be recognized a code each other to the ECM/PCM and Keyless Access Control Unit. Otherwise, the engine cannot be started.

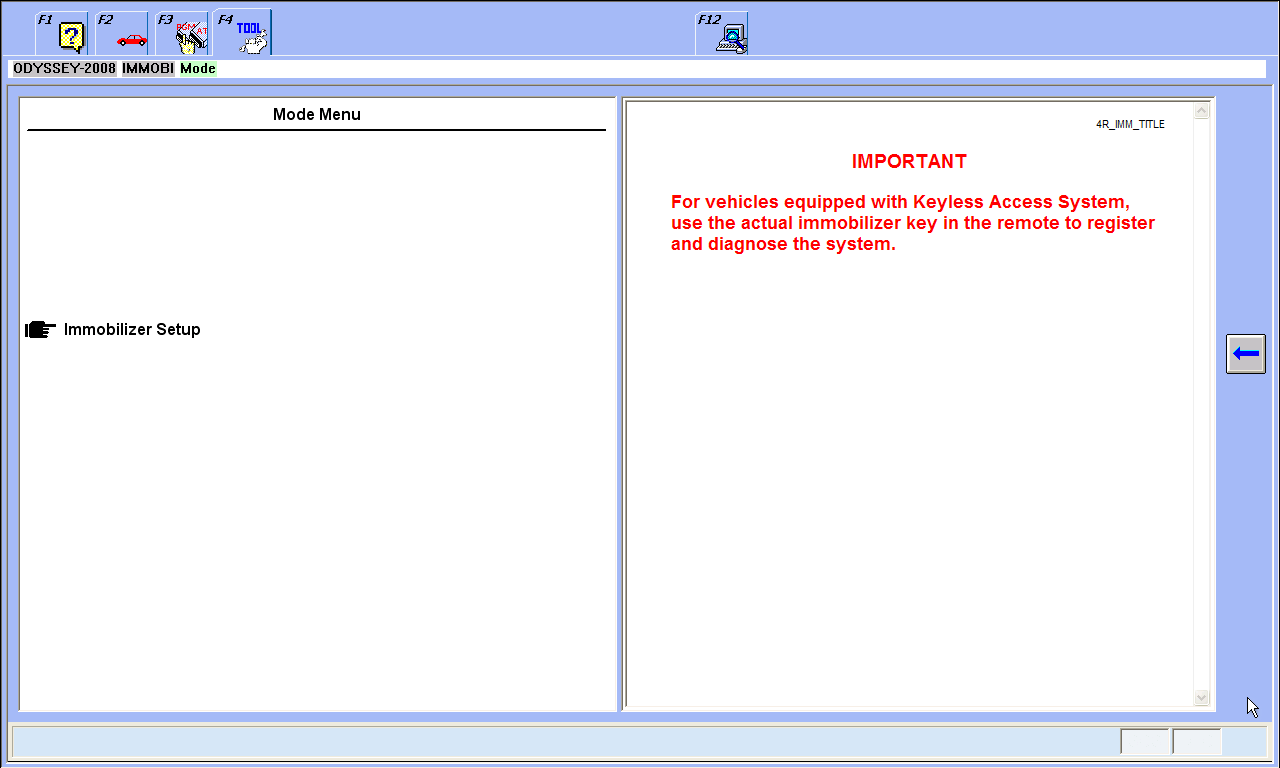

1.System Selection Menu, click [IMMOBI]

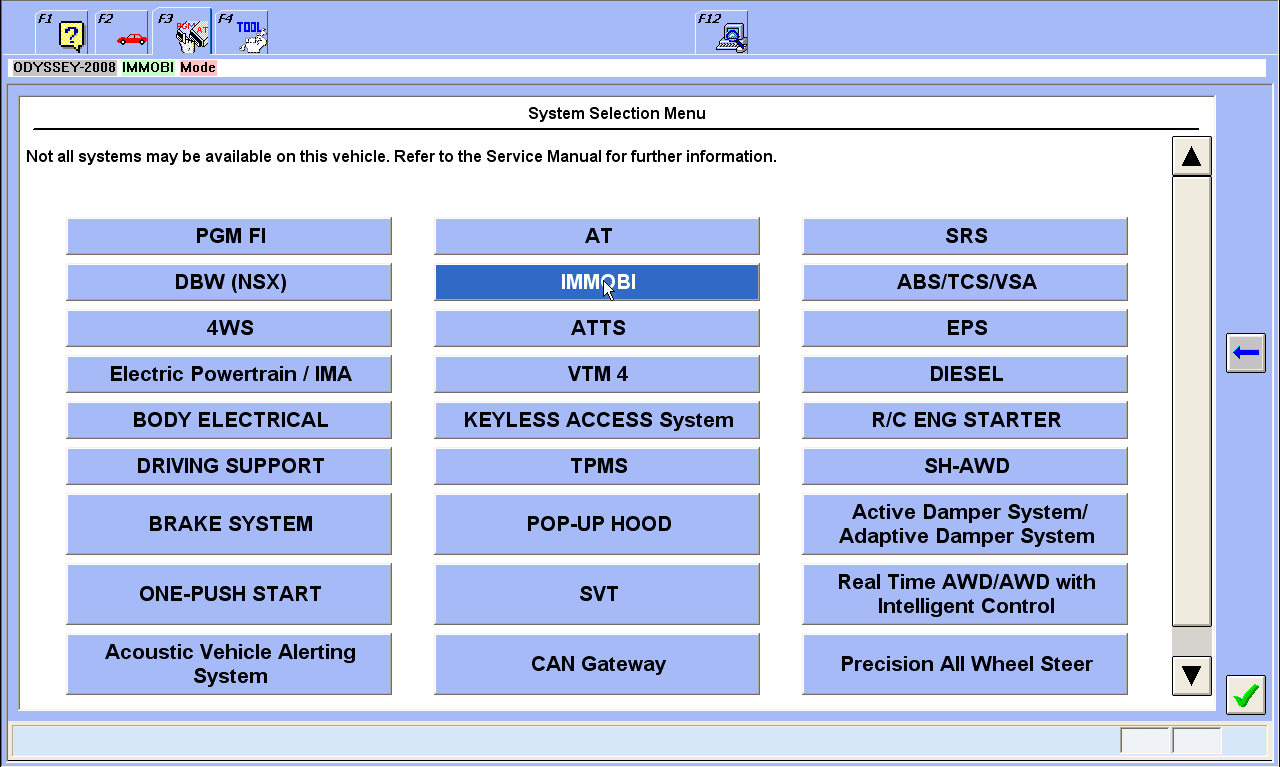

System Selection Menu

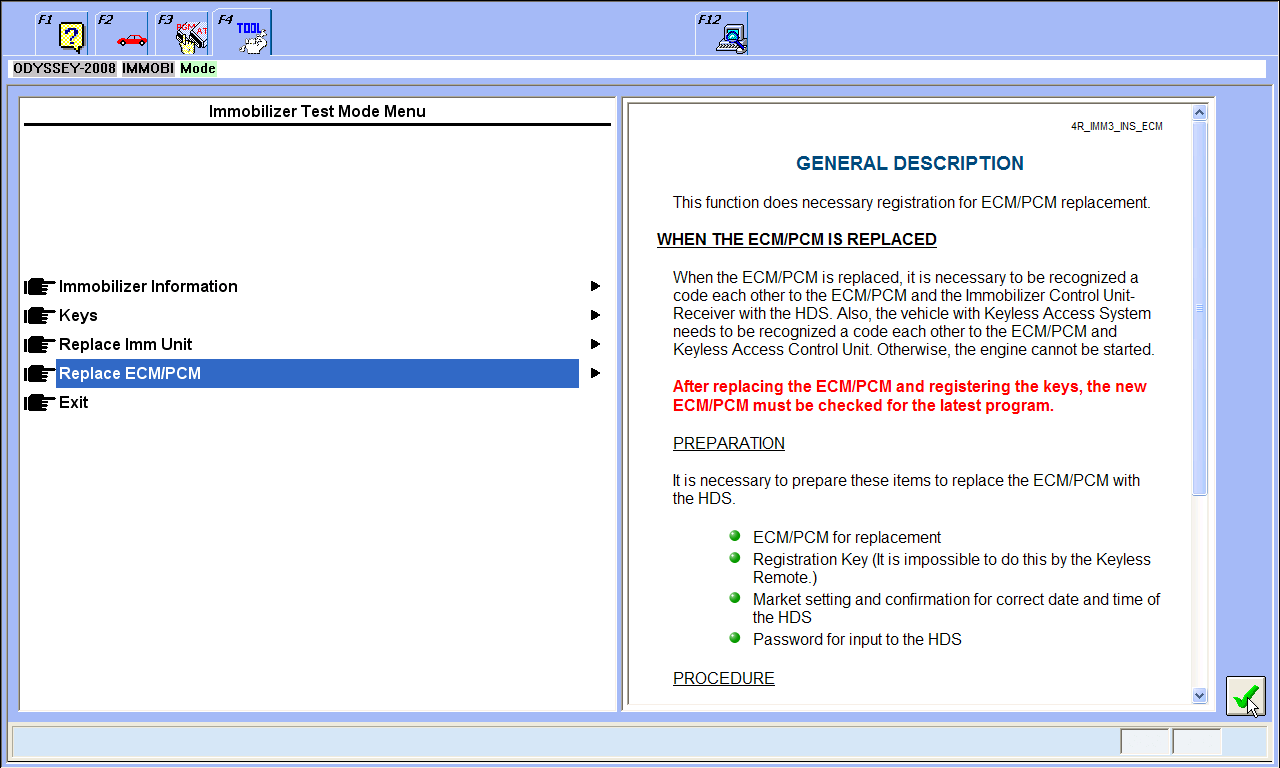

2.Click [Replace ECM/PCM]



3.Press tick to continue

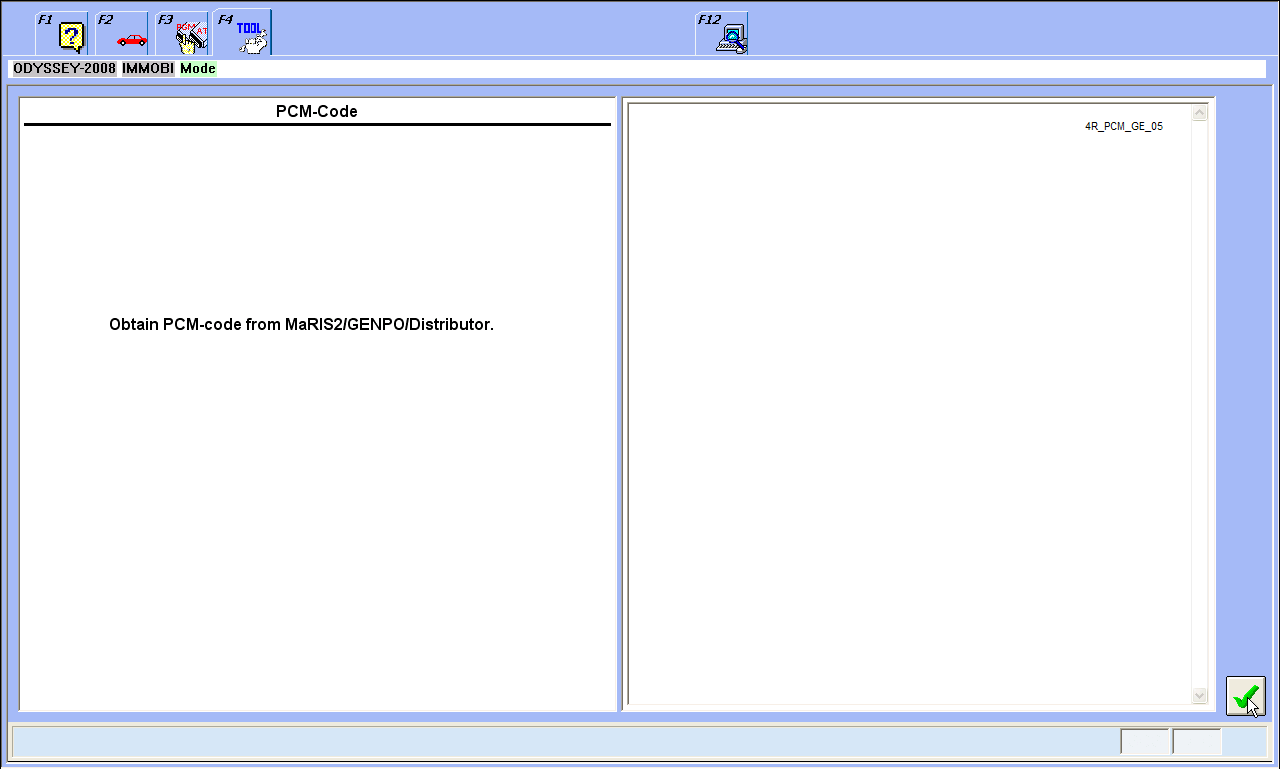

Obtain PCM-code from MaRIS2/GENPO/Distributor

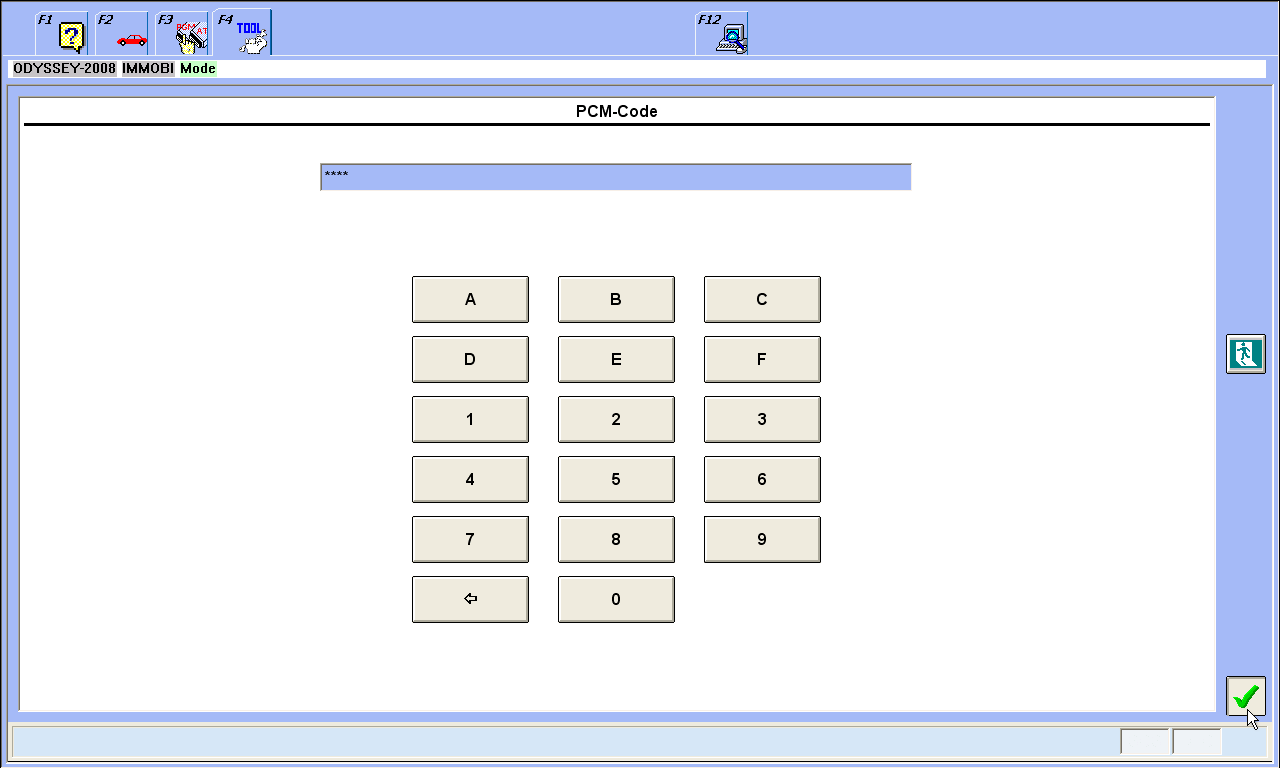

4.Input PCM-code and Press tick to continue

PCM-code to use [Acura code Generator] calculated, you can buy it from ALLSCANNER Tech Co.,Ltd. Tel:0755-33000960


5.Turn the ignition switch off

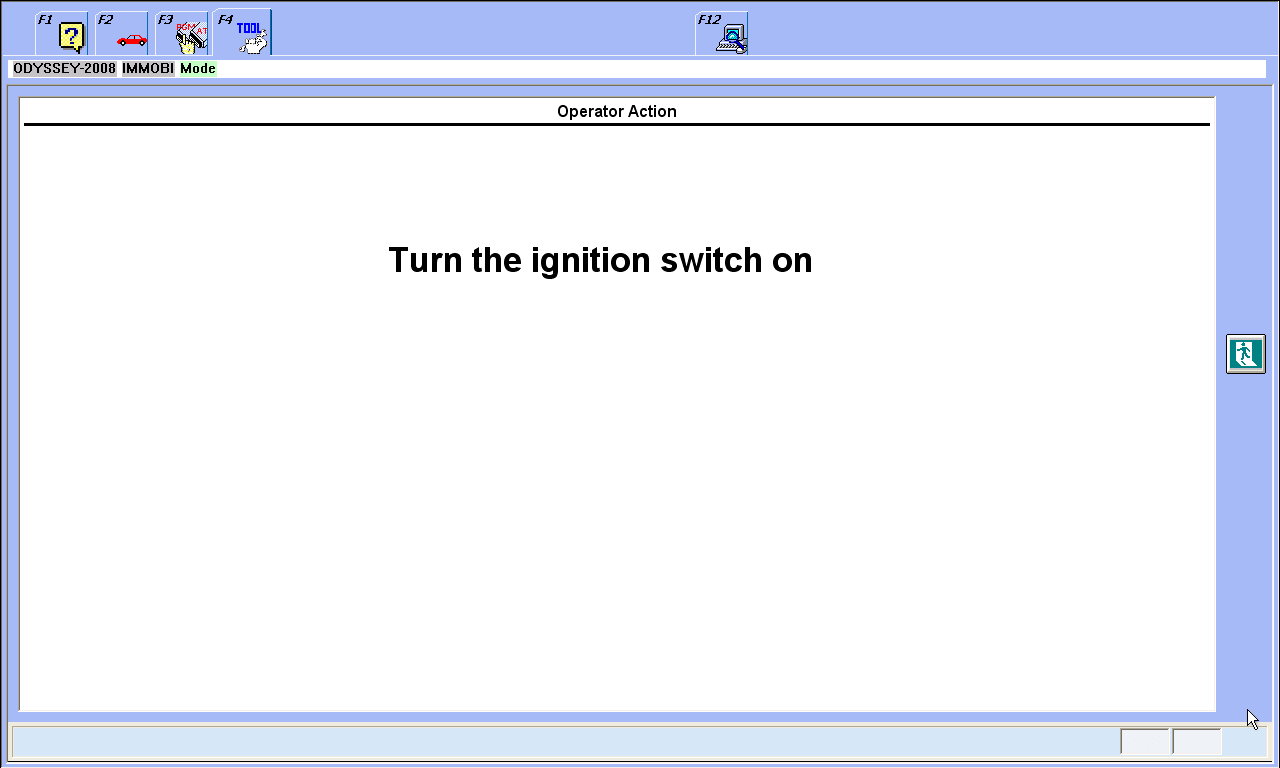

6.Turn the ignition switch on


7.Turn the ignition switch off.

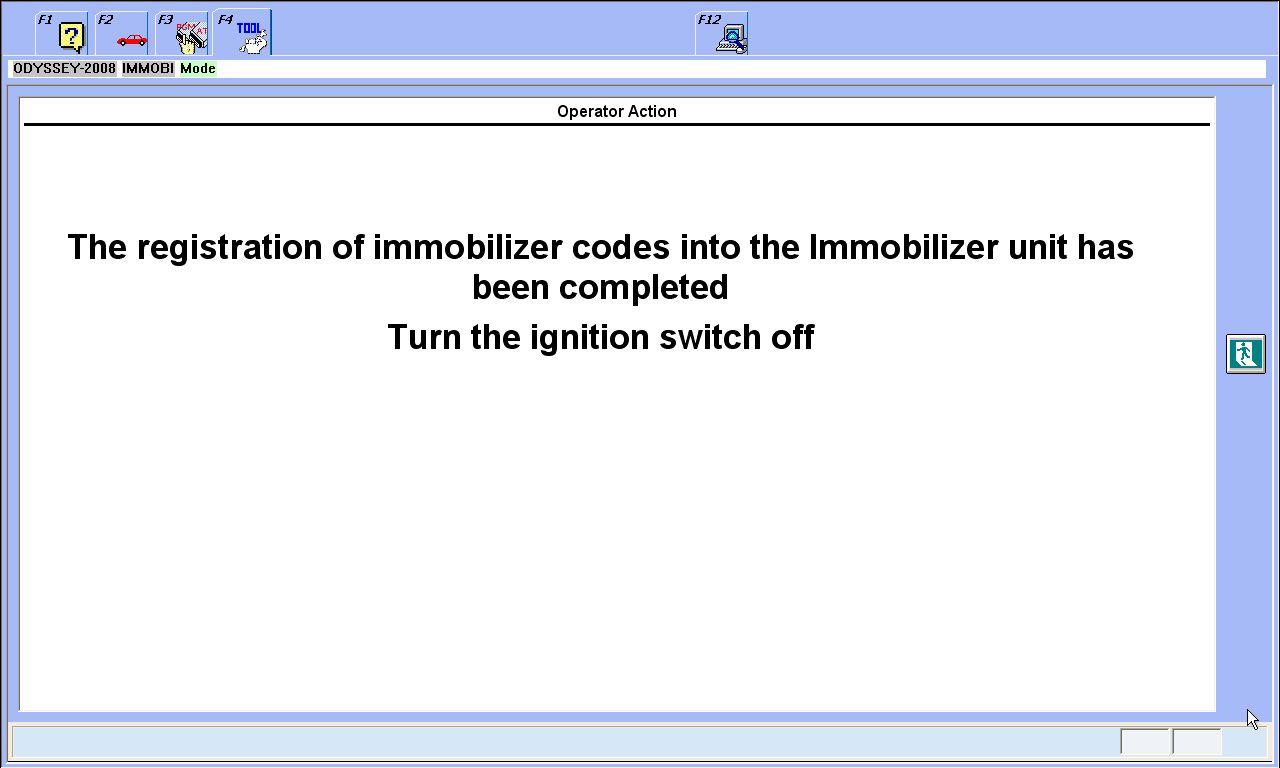

The registration of immobilizer codes into the Immobilizer unit has been completed.


8．Press tick to continue

Check all keys to ensure each will start the engine


9.Click [NO]

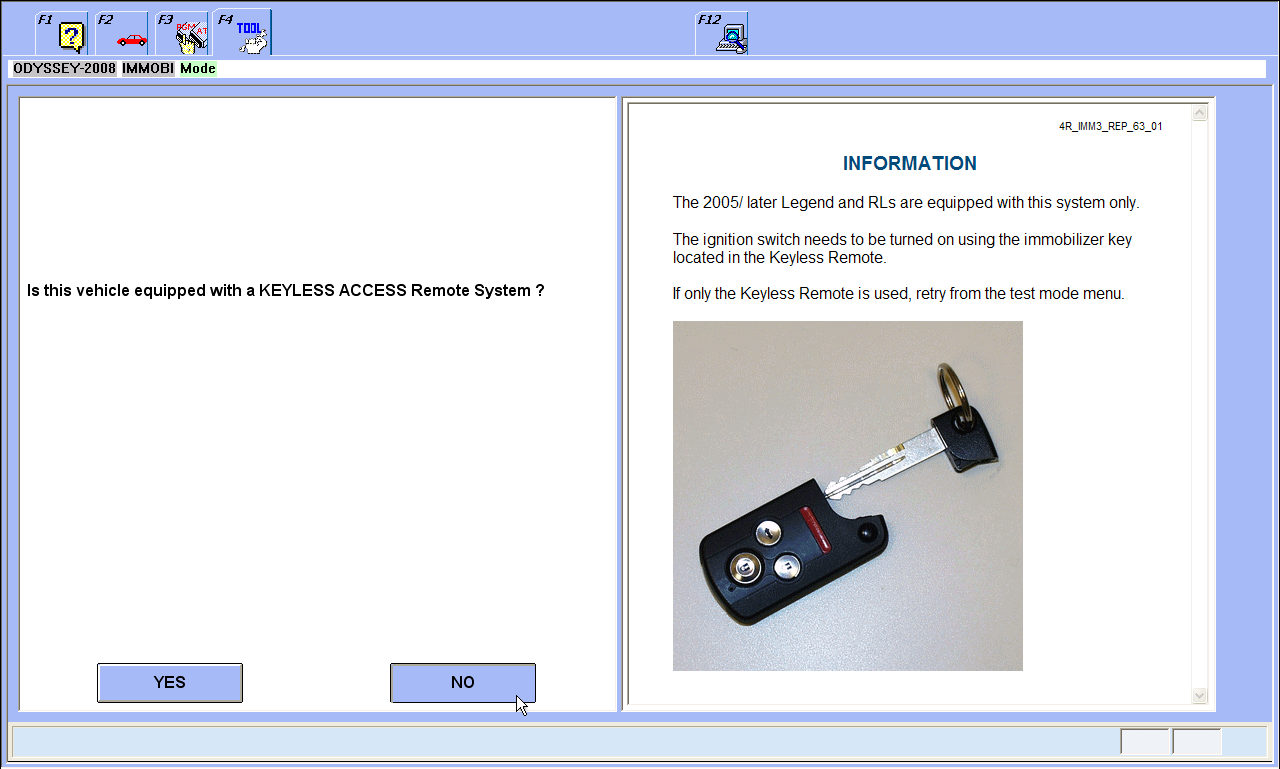

Is this vehicle equipped with a KEYLESS ACCESS Remote System?

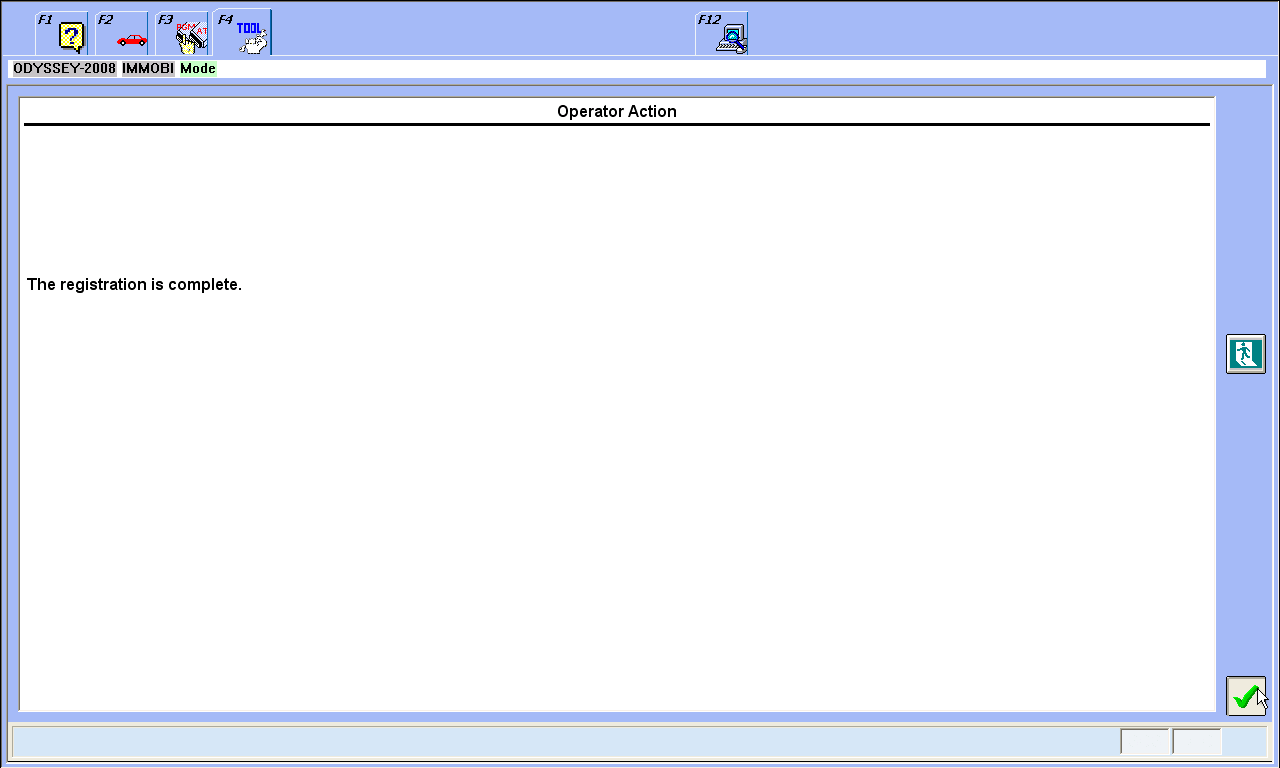

10.The registration is complete.Press tick to continue
